The principle characteristics

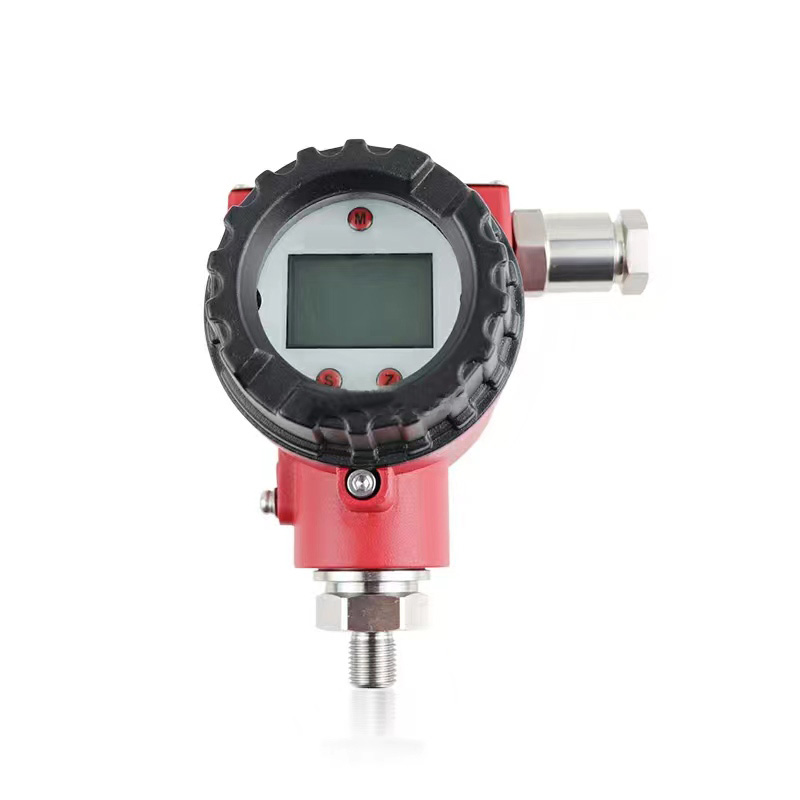

The pressure transmitter uses a pressure sensor with isolated diaphragm as the signal measuring element, and through computer automatic detection and laser resistance adjustment process, the zero and sensitivity temperature compensation of a wide temperature range are achieved. The pressure of the measured medium acts directly on the diaphragm of the sensor, so that the diaphragm produces a small displacement proportional to the pressure of the medium. After the electronic circuit detects this displacement, the displacement is converted into a standard industrial measurement signal corresponding to this pressure. The sensor has good stability and high reliability.



- ASIC and surface packaging technology



- Strong metal shell can meet the harsh working environment



- With 316L stainless steel diaphragm



- Display multiple units Optional



Application field

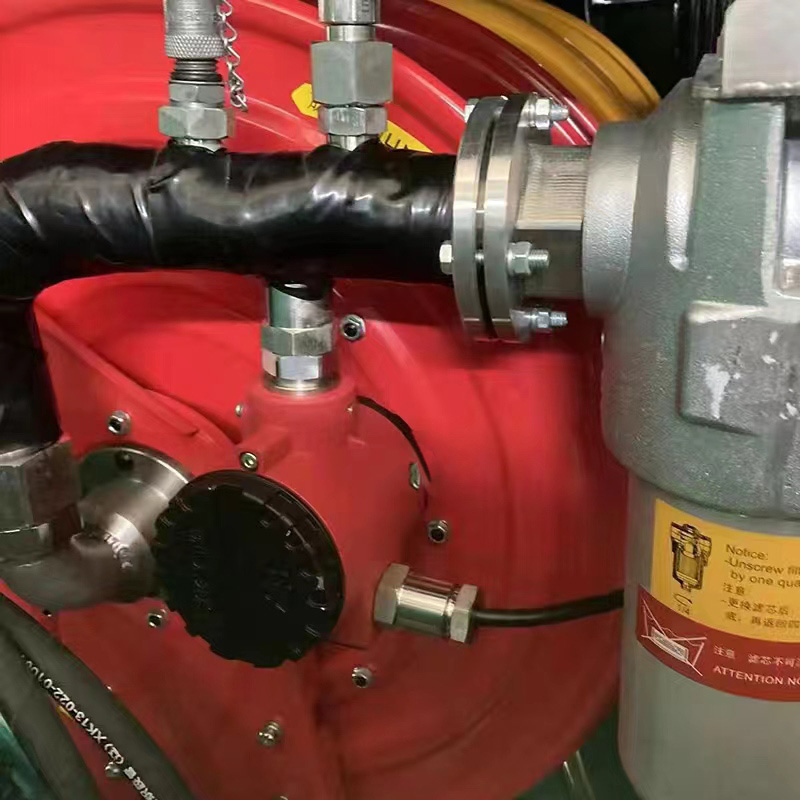

Can measure all kinds of liquid, gas measurement, widely used in petroleum, chemical, electric power, metallurgy, pharmaceutical, food and other industrial fields
